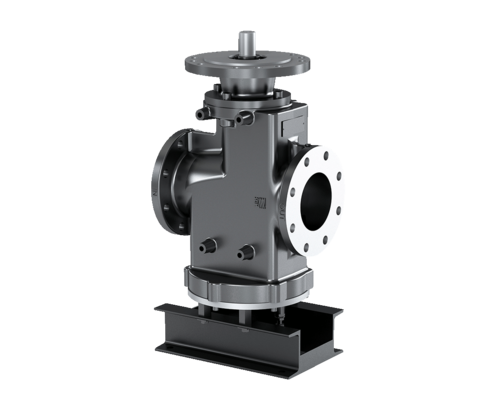

PZ Series 3 screw pump

60000.00 - 500000.00 INR

Get a Price/Quote

Product Details:

Supply Ability : 10 Piece Per Day
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 Piece
Price Range 60000.00 - 500000.00 INR

Trade Information

Supply Ability 10 Piece Per Day
Delivery Time 8 Week

Product Description

Featuring a solid and sturdy design, developed from the Heavy Duty Industry version and optimised to transport fluids with completely diverse viscosities and properties, from LSMGO to HFO, this pump is also frequently used in Diesel Engine, Thruster and Reduction Gear lubrication systems. Body also available in Grey cast iron (UNI EN 1561:2011 EN-GJL-250) and Nodular cast iron (UNI EN 1563:2011 EN-GJS-400).

OPERATING CONDITIONS

Fluids: Fuels (HFO, LFO,MGO,DO,LSMGO); Mineral and synthetic lubricating oil
Solid content: ask SEIM for details
Speed: between 750 and 3600 rpm, depending by the pump size
Rotation (shaft view): Clockwise CW (std) - CCW counter clockwise on request

INSTALLATION DATA

Installation: Indoor or Outdoor - Horizontal or Vertical, also on foot mounting by SEIM
Environment: Industrial, Marine

TECHNICAL CHARACTERISTICS

Specifications - Overall dimensions - Sales Catalogue

Design available	STANDARD SEIM, ABS Type Approval, BV Mode II, RINA
Flow Rate USGPM	1270
Suction pressure	between -0.5 and 10 barg (between -8 and 146 psi)
Seal	Mechanical
Bearing	Radial
Bearing lubrication	Self-lubricated
Safety valve	Internal recirculation
